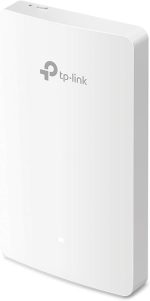

tp-link EAP235-Wall Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point
- Omada SDN Ready: Ready for Omada SDN controller for centralized management and monitoring.
- Fast Dual-Band Wi-Fi: Simultaneous 300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz totals 1,167 Mbps Wi-Fi speeds.†
- Four Gigabit Ports: 4 Gigabit Ethernet ports, one uplink and three access ports. PoE pass-through is available on one of the access port providing power for desk phones, cameras or other PoE devices.
- Centralized Management: Cloud access and Omada app for mobility and easy management.
- Elegant Appearance: Ultra slimmest and conspicuous design blends the access point into the walls of hotel rooms, hospitals, offices, and dormitories.
- Easy Installation and PoE Support: Easy-mount construction, compatible with US, EU and 86mm junction boxes with PoE support.
- Customer Oriented Guest Network: Along with multiple ways of login (SMS, Facebook Wi-Fi, Voucher, and customizable captive portal) allows guest access smoothly and friendly.
- Advanced Wireless Tech: Optimize network performance with airtime fairness, band steering, and beamforming technologies.
HARDWARE FEATURES | |
---|---|
Interface | Uplink port: One 10/100/1000 Mbps Ethernet Port, accepts 802.3af or 802.3at PoE Access ports: Three 10/100/1000 Mbps Ethernet Ports with one PoE power pass-thru port |
Physical Security Lock | Yes |
Button | Reset |
Power Supply | 802.3af/802.3at PoE |
Power Consumption | 9.8 watts 24.4 watts with 13w PoE output |
Dimensions ( W x D x H ) | 143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in) |
Dimensions | 5.6 × 3.4 × 0.8 in. 143 × 86 × 20 mm |
Antenna | 2.4 GHz: 2× 4 dBi 5 GHz: 2× 4 dBi |
Mounting | Wall Plate Mounting |
WIRELESS FEATURES | |
---|---|
Coverage | 25㎡(300 ft²)*** |
Wireless Client Capacity | 200+** |
Concurrent Clients | 200+** |
Wireless Standards | IEEE 802.11a/b/g/n/ac |
Frequency | 2.4 GHz and 5 GHz |
Signal Rate | 5 GHz: Up to 867 Mbps 2.4 GHz: Up to 300 Mbps |
Wireless Functions | 16 SSIDs (Up to 8 SSIDs on each band) Enable/ disable SSID broadcast Automatic channel assignment Transmit power control (adjustable in 1 dBm step) QoS (WMM) Band steering Beamforming Load balance Rate limit Scheduled reboot Wireless scheduled on/off Wireless Statistics based on SSID, access point, or client |
Wireless Security | Captive portal authentication Access control list Wireless MAC address filtering Wireless isolation between clients SSID to VLAN Mapping LAN port-based VLAN Rogue AP detection 802.1X EAP support 64/128/152-bit WEP, WPA/WPA2-PSK, WPA/WPA2-Enterprise |
Transmission Power | ≤21 dBm (2.4 GHz) ≤21 dBm (5 GHz) |
MANAGEMENT | |
---|---|
Omada App | Yes |
Centralized Management | Omada Cloud-Based Controller Omada Hardware Controller (OC300) Omada Hardware Controller (OC200) Omada Software Controller |
Cloud Access | Yes |
Email Alerts | Yes |
LED ON/OFF Control | Yes |
Management MAC Access Control | Yes |
SNMP | v1, v2c |
System Logging Local/Remote Syslog | Local/ remote syslog |
SSH | Yes |
Web-based Management | HTTP/ HTTPS |
L3 Management | Yes |
Multi-site Management | Yes |
Management VLAN | Yes |
Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
OTHERS | |
---|---|
Certification | FCC, RoHS |
Package Contents | Omada AC1200 Wireless Gigabit Wall Plate Access Point EAP235-Wall Installation guide Mounting screw |
Environment | Operating temperature: 0–40 ℃ (32–104 ℉) Storage temperature: -40–70 ℃ (-40–158 ℉) Operating humidity: 10–90% RH non-condensing Storage humidity: 5–90% RH non-condensing |
